ZirChrom Newsletter vol. #11

Vol.# 11- “ZirChrom®-Chiral: Zirconia-based Chiral Stationary Phases”  (PDF) (high res PDF)

Welcome to the eleventh issue of ZirChrom's electronic newsletter. This newsletter introduces our new line of zirconia-based chiral HPLC phases, ZirChrom®-Chiral. These new patent-pending chiral stationary phases incorporate the unsurpassed chemical and mechanical stability of zirconia with the flexibility of Lewis acid/base anchored chiral selectors. Portions of this newsletter were excerpted from an article published in American Laboratory, 37, No. 21, pp 22-4 (October 2005).


In recent years, high-performance liquid chromatography has become the dominant method for the analytical and preparative separation of chiral pharmaceuticals. (1-5) However, until now, no chiral stationary phase (CSP) used zirconia or inorganic oxides other than silica as a substrate. Zirconia has many attractive properties for HPLC, including spherical particle shape and narrow size distribution. Additionally, it exhibits unsurpassed chemical and mechanical stability. Its surface chemistry is very different from silica gel due to the presence of a high population of strong Lewis acid (Zr+4) sites (see Figure 1).

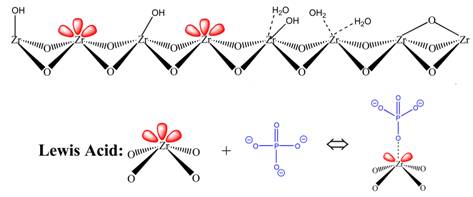

Figure 1: Surface Chemistry of Zirconia particles

The synthesis of the ZirChrom®-Chiral phases capitalizes on the presence of Lewis acid sites on the surface of the zirconia to provide a more robust and chemically flexible platform for CSP design. (6-9)

This novel approach to the production of chiral stationary phases on zirconia that has been developed that offers significant method development advantages over other platforms. Zirconium atoms on the surface of zirconia (zirconium dioxide) particles act as strong Lewis acid sites that allow for facile attachment of chiral stationary phases by a tethering group having strong electron donor chelating properties. ZirChrom®-Chiral phases are synthesized using a simple two-step approach: 1) attach an appropriate tethering group to the zirconia surface through a Lewis acid-base reaction, and 2) covalently attach the desired CSP to the tethering group using amide bond formation chemistry. (12)  Brush-type CSPs were selected for initial experiments due to their ease of synthesis, wide scope of applicability, and large body of available silica-based separations data for comparison. An illustration of the two-step reaction scheme is shown in Figure 2, and a typical chemical reaction is shown in Figure 3 using pamidronic acid as a very strong tethering agent.

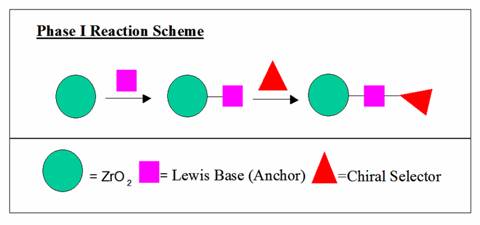

Figure 2: Typical two-step chemical reaction involving the addition of a reactive chelator (pamidronic acid) followed by EEDQ amide bond formation with a chiral carboxylic acid reagent. (12)

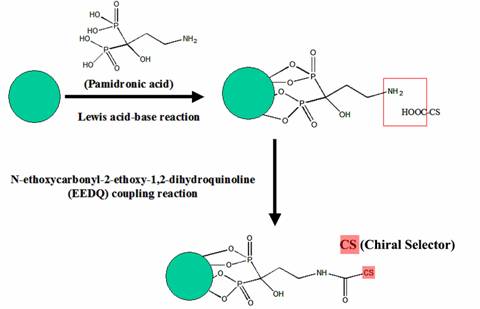

Figure 3: Example of a typical chemical reaction used to tether a chiral selector to the zirconia surface.

Chiral stationary phases produced in this manner exhibit high stability under normal-phase HPLC operating conditions, but can be completely removed by washing under aqueous, alkali conditions.


ZirChrom®-Chiral phases couple the mechanical strength and stability of zirconia with the flexibility of Lewis acid site chiral modification. This combination creates a CSP that is reproducible, durable and can be regenerated.

Robust, efficient CSP columns were successfully prepared in by the two-step reaction scheme using the chiral selectors shown in Figure 4.

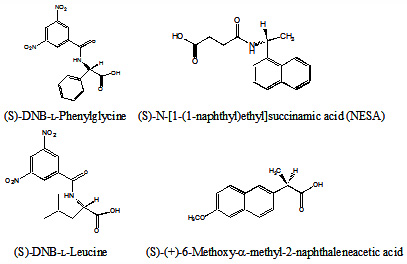

Figure 4: Chiral selector molecules that were evaluated during ZirChrom®-Chiral research.

The tethering group was allowed to react with the unmodified zirconia particles, and the chiral selector was covalently attached to the amino-modified zirconia using the N-ethoxycarbonyl-2-ethoxy-1,2-dihydroquinoline (EEDQ) coupling reaction that is commonly employed for peptide synthesis. (12) Columns produced in this manner were compared to silica columns having analogous chiral selectors and found to have similar resolving power for the selected probe enantiomers. Most importantly, the chemisorbed chiral selectors on zirconia were found to be stable enough for extended routine use; however, they could be completely removed by washing with a high pH (>pH 12) aqueous solution and could be easily regenerated. Results shown in Figures 5-7 for the zirconia-based CSP columns are comparable to the performance of silica-based columns having a similar chiral selector.

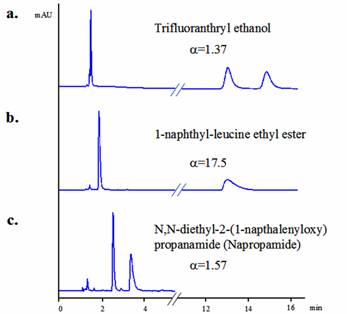

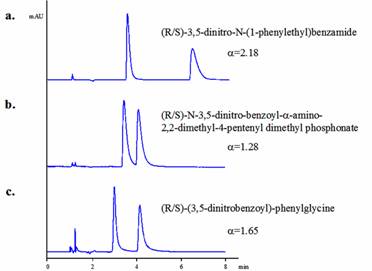

Figure 5: ZirChrom®-Chiral(R)NESA CSP column selectivity examples. Conditions: a) and b) 88.9/11/0.1 hexane/isopropanol/TFA (trifluoracetic acid, c) 75/15/9/1 hexane/methanol/isopropanol/TFA; 100 × 4.6 mm column; flow = 1.0 mL/min; 30 °C.

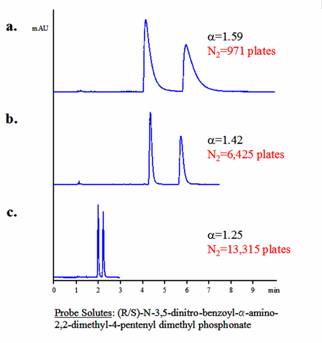

Figure 6: Effect of mobile phase changes on ZirChrom®-Chiral(R)NESA CSP column: a) 89/11 hexane/isopropanol, b) 95/2/3 hexane/methanol/isopropanol, c) 87/10/3 hexane/methanol/isopropanol; other conditions as in Figure 5.

Figure 7: ZirChrom®-Chiral(S)LEU CSP column selectivity examples. Conditions: 99/1 hexane/isopropanol (all runs); other conditions as in Figure 5.

Selectivity is compared in Figure 8 for 12 probe solute enantiomers on zirconia (S)-dintrobenzoyl-L-leucine CSP and zirconia (S)-dinitrobenzoyl-L-phenylglycine CSP. As expected, changing the chiral selector had a significant effect on the resolution of enantiomers. This ability to change chiral selectors on the same column can reduce the influence of other column factors and allow the focus to be placed on choosing the best chiral selector during method development.

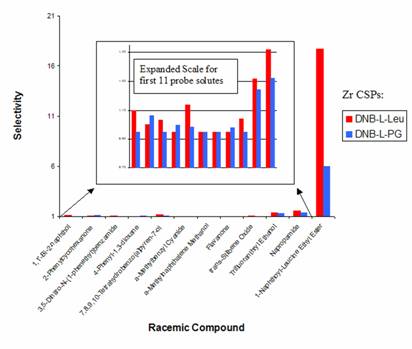

Figure 8: Selectivity comparison between ZirChrom®-Chiral(S)LEU and ZirChrom®-Chiral(S)PG CSP columns; conditions as in Figure 7.

Data on the stability and reproducibility for the ZirChrom®-Chiral(S)LEU CSP column used in Figure 8 are shown in Figures 9 and 10, respectively.

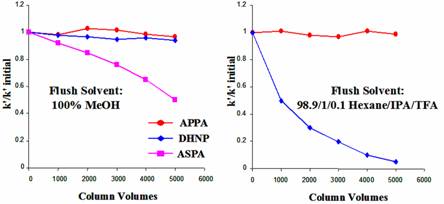

Figure 9: Stability comparison of ZirChrom®-Chiral(S)LEU prepared with different Lewis base tethering groups in a two-step process. APPA= aminopropylphosphonic acid; DHNP= dihydroxynorephedrine; ASPA = aspartic acid.

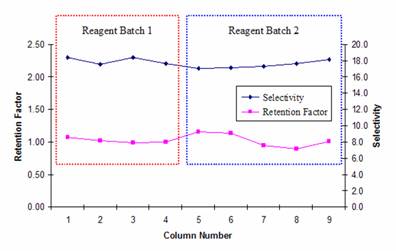

Figure 10: QC tests for two different batches of zirconia with APPA-tethered ZirChrom®-Chiral(S)LEU and nine columns packed with these two batches; probe solutes were (R/S)-naphthylleucine ethyl ester; retention factor is shown for R-naphthylleucine ethyl ester.

A two-step reaction scheme was employed using three different types of tethering agents. Figure 9 confirms that the choice of tethering groups has a great effect on zirconia CSP column stability. Aminopropylphosphonic acid (APPA) was the most stable among these three types with wash solvents that would be used in analytical mobile phases. Lot reproducibility studies shown in Figure 10 confirmed that a chiral selector can be attached reproducibly to the zirconia surface using the APPA tethering group in a two-step reaction scheme. Data that are not shown indicate that the choice of tethering group can also have a minor effect on chiral selectivity.

Figure 11 illustrates the single-step reaction scheme that is targeted for future commercial applications.

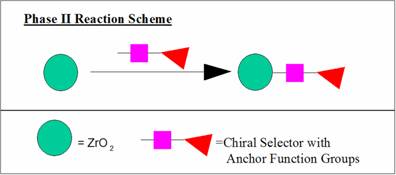

Figure 11: A chiral reagent containing an integral tethering group is attached to bare zirconia in a simple, one-step process.

A separation on a CSP column prepared with N-(4-nitrobenzoyl)-L-glutamic acid using a single-step reaction process is shown in Figure 12; the column was stripped and regenerated to demonstrate reproducibility of the simple, one-step loading process. After stripping, the bare zirconia column did not exhibit any retention or selectivity for the chiral analytes. Work is continuing as part of the NIH Phase II SBIR Grant to develop a wider range of chiral selector reagents with integral tethering groups that permit single-step loading under mild conditions. Phase II research has also concentrated on the use of phosphonic acid and certain multi-phosphonic acids (see pamidronic acid in Figure 3) as tethering groups for preparing very robust commercial products that are easy to coat and stable under a variety of mobile phase conditions including both normal and reversed-phase.

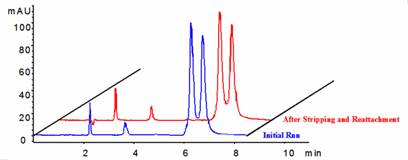

Figure 12: Comparison between the separation of (R/S)-2,2,2-trifluoro-1-(9-anthryl)ethanol before and after stripping and reattaching an N-(4-nitrobenzoyl)-L-glutamic acid (CSP) reagent according to the Phase II scheme shown in Figure 10. Conditions: 99/1 hexane/isopropanol; other conditions as in Figure 5.


The revolutionary zirconia-based ZirChrom®-Chiral stationary phases incorporate the chemical and mechanical stability of zirconia with the flexibility of renewable Lewis acid/base chemistry chiral modifications. ZirChrom®-Chiral stationary phases are available in packed columns with a growing variety of chiral selectors. Currently, ZirChrom offers five different chiral columns in the ZirChrom®-Chiral line:

Product development is underway for a single, highly stable zirconia column plus a kit of pure CSP coating reagents that will allow users to easily remove and replace chiral selectors by reproducible and simple methods. Chiral selectors with multiple chiral centers, featuring both pi donor and acceptor groups, are also under development, as are chiral selectors based on polysaccharides.

Additional information regarding ZirChrom®-Chiral products is available on the ZirChrom® website at: www.zirchrom.com or by visiting our booth, #220, at EAS 2005.



  1. Beesley TE, Scott RPW. Chiral chromatography. New York: John Wiley & Sons, 1998.
  2. Boehm RE, Martire DE, Armstrong DW. Theoretical considerations concerning the separation of enantiomeric solutes by liquid chromatography. Anal Chem 1988; 60:522-8.
  3. Subramanian PW, Carr CV, McNeff CV. Use of spray-dried zirconia microspheres in the separation of immunoglobulins from cell culture supernatant. J Chromatogr 2000; 890(1):15-23.
  4. Schleimer M, Pirkle WH, Schurig V. Enantiomer separation by high performance liquid chromatography on polysiloxane-based chiral stationary phases. J Chromatogr A 1994; 679:23-34.
  5. Pirkle WH, Readnour RS. The influence of end-capping on the enantioselectivity of a chiral phase. Chromatographia 1991; 31:129-32.
  6. Cecelia B, Castells CB, Carr PW. Cellulose tris(3,5-dimethylphenylcarbamate) coated zirconia as a chiral stationary phase for HPLC. Anal Chem 1999; 71:3013-21.
  7. Castells CB, Carr PW. A study of thermodynamics and influence of temperature of chiral high-performance liquid chromatographic separations using cellulose tris(3,5-dimethylphenylcarbamate) coated zirconia stationary phases. Chromatographia 2000; 52(9-10):535-42.
  8. Park JH, Ryu JK, Park JK, McNeff CV, Carr PW. Separation of enantiomers on bovine serum albumin coated zirconia in reversed-phase liquid chromatography. Chromatographia 2001; 53(7/8):405-8.
  9. Park SY, Park JK, Park JH, McNeff CV, Carr PW. Separation of racemic 2,4-dinitrophenyl amino acids on carboxymethyl-ß-cyclodextrin coated zirconia in RPLC. Microcol J 2001; 70:179-85.
  10. Phase I SBIR Grant (NIH R43 HL070334-01).
  11. Phase II SBIR Grant (NIH R44 HL070334-02A2).
  12. Yang A, Gehring A, Li T. J Chromatogr A 2000; 878:165-70.
